China crawler borehole rock diamond mine drilling rig for stone

  • 1 - 4 Sets
    $17,000.00
  • 5 - 9 Sets
    $16,900.00
  • >=10 Sets
    $16,800.00
Model Number:
HC726A
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Zhejiang, China
Brand Name:
HONGWUHUAN
Usage:
rock,coal,ore,water well
Voltage:
diesel engine
Power(W):
40kw
Dimension(L*W*H):
5260*2045*1950mm
Weight:
4200kg
Certification:
ISO,GC
Warranty:
1 Year
Product name:
Crawler Rock Drilling Rig Machine
Drilling depth:
25m
Drilling diameter:
90-130mm(standard 90mm)
Power source:
40kw four cylinder diesel engine
Rotary speed:
0~90r/min
Walking speed:
2.5km/h
Work pressure:
0.7~1.6MPa
Ground clearance:
300mm
Max lifting power:
15KN
Matching spare parts:
1.drill rod;2.drill bit;3.dth hammer;4.hose;5.tool box
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
1000 Set/Sets per Month for crawler drill rig machines
Packaging & Delivery
Packaging Details
NUDE PACKED for the set;
WOODEN CASE for the spare parts.
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 To be negotiated
Product Introduction

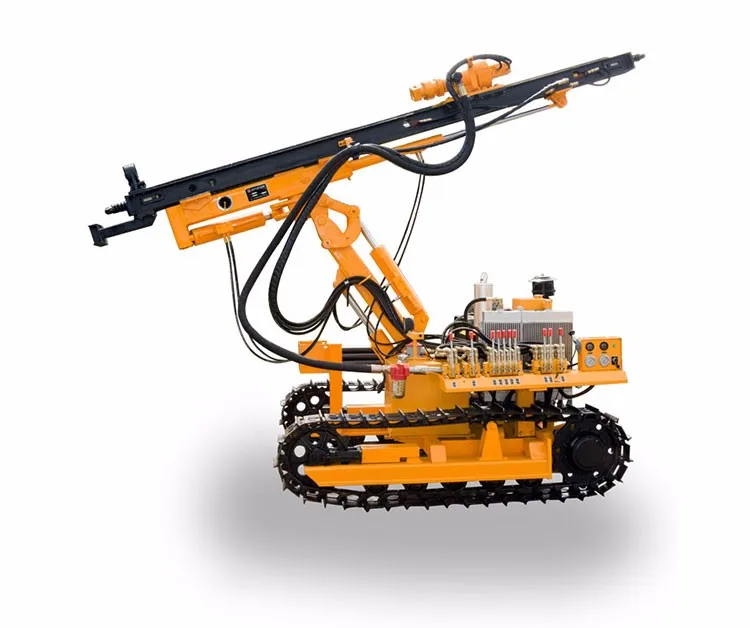

HONGWUHUAN HC726A crawler base core borehole rock diamond mine drill rig for stone

Technical Parameter

whole machine model
HC726A













whole machine
To adapt to the rock hardness
6~20
diameter of bore(mm)
90~130(standard 90)
Economic drill deepth(m)
25
Stand-alone gradeability()
25
Propulsion mode
Motor
Feeding stroke(m)
3
Maximum lift capacity(KN)
15
Rotary torque(N.M)
1800
Rotary speed(r/min)
0~90
Work pressure(MPA)
0.7~1.6
Air consumption(m3/min)
7~15
 Main Power(kw)
40
Drill arm horizontal pendulum Angle()
Left30 Right30 Special left90
Walking speed(km/h)
2.5
Ground clearance(mm)
300
Dimensions(mm)
5260*2045*1950
Weight(kg)
4200
Product Features



Equipped with two motors and planetary gear gyrator,
has the characteristics of large rotary torque, high
efficiency and durable


Equipped with 40 kw yuchai four cylinder diesel engine,
elastic coupling transmission, stable and reliable, with

 a pre-filter, oil bath type air filter and air filter level 3,
vice water tank and is equipped with (antifreeze), greatly
improving the diesel engine's adaptability to the
environment.




Multi-way valve adopts single layer of double entry
structure, location is reasonable, easy to operate;



The prefilter, oil bath type air filter and air filter level
3, for the diesel engine working under high dust
environment provides the guarantee




Power output gear box with double gear structure
of mercury



 Drill arm, novel structure, convenient adjustment,
greatly improve the area of drilling, apply to drill
horizontal hole low. The lowest level hole height 300mm



Using engineering with walking motor, strong
gradeability, low failure rate.
