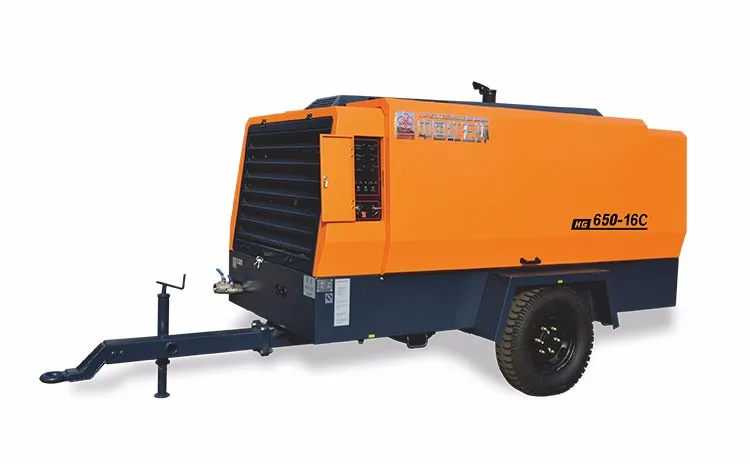

2017 HONGWUHUAN low loss screw air compressor

FOB Reference Price:Get Latest Price
$20,400.00 - $29,200.00 / Sets | 1 Set/Sets for low loss screw air compressor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HONGWUHUAN
Model Number:
HG650-16C
Dimension(L*W*H):
4600mm*1980mm*2210mm
Product name:
2017 HONGWUHUAN low loss screw air compressor
Air Displacement:
17m3/min
engine:
CUMMINS
Rotate Speed:
2200rpm
Drive Mode:
Direct Drive
Discharge Pressure:
16bar
Coolant Capacity:
60L
Our advantage:
our technical worker more than 20 years Experience
Delivery time:
shipped in 15 days after payment
out package:
plywood case
Weight:
3280kg
After-sales Service Provided:
No overseas service provided
Warranty:
1 Year
Configuration:
Portable
Lubrication Style:
Lubricated
Type:
Screw
Voltage:
380V
Condition:
New
Certification:
ISO,CE,GC
Power Source:
Diesel
Mute:
low noise
Supply Ability
Supply Ability:
1000 Set/Sets per Month for low loss screw air compressor
Packaging & Delivery
Packaging Details
2017 HONGWUHUAN low loss screw air compressor
Packaged Form:Plywood Case Or Carton Box Packaged Size(L*W*H): 4750*2130*2410mm Container Details: 40HQ:2 stes
Port
SHANGHAI for low loss screw air compressor
Lead Time :
shipped in 15 days after payment for low loss screw air compres
Product Introduction

2017 HONGWUHUAN low loss screw air compressor

Technical Parameter

Product name
HG750-8C
HG650-13C
HG550-16C
HG650-16C
HG550-18C
Compressor
Air Displacement(m3/min)
21
17
15
17
15
Discharge Pressure(bar)
8
13
16
16
18
Air End Model
COMER AB-1900R
BAOSI YNE204RB
COMER AB-1200R
BAOSI 204RB
COMER AA-1200R
Compressed Class
Single
Single
Single
Single
Single
Oil Tank Capacity(L)
130
130
130
130
130
Screw Oil Capacity(L)
80
80
80
65
80
Engine
Engine Model
DongFeng Cummins(6CTA8.3-C260)
WEICHAI(WP6B160E242)
WEICHAI(WP6B160E242)
DongFeng Cummins(6BTA8.3-C260)
DongFeng Cummins(6CTA8.3-C240)
Cylinder No.
6
6
6
6
6
Rotate Power(KW)
179
160
160
194
179
Rotate Speed(RPM)
2200
2200
2200
2200
2200
Lubricating Oil Capacity(L)
24
24
24
24
24
Coolant Capacity(L)
60
60
60
60
60
Fuel Capacity(L)
350
350
350
350
350
Whole Machine
Drive Mode
Direct Drive
Direct Drive
Direct Drive
Direct Drive
Direct Drive
Joint Dimension
1-G2”, 1-G1”
1-G2”, 1-G1”
1-G2”, 1-G1”
1-G2”, 1-G1”
1-G1”, 1-G2”
Size(L*W*Hmm)
4600×1980×2210
4600×1980×2210
4600×1980×2210
3400×1780×2000
4600×1980×2210
Weight(KG)
3280
3280
3280
3280
3280
Wheel No.
2
2
2
2 or without wheel
2
Product Features


The main components uses the domestic well-known enterprise product, reliable quality. constant pressure, stable flow: make continuous automatically adjustable from 0 to 100%, energy-efficient、stable and reliable、 Economic, no pollution, low noise



Small volume, light weight, low noise; Appearance is light, easy to transport, actual cover small area,In the narrow working condition can be easily in and out,Reduce the transportation costs. all door open design,make sure the wide operation space,Convenient maintenance and repair.save time,improve efficiency




Equipment running state can be comprehensive monitoring; The control panel, equipment running status be clear at a glance, ensure the security of the people, machine




Can meet the field of overloading and harsh environment

About the advantages of our factory for you reference.
1. more than 20 year low loss screw air compressor manufacture.
4. we are WEICHAI,CUMMINS,YUCHAI,HANBELL supplier
2. One -stop service more than 20 years.
5. we have more than 20 years of export experience.
3. we have big showroom in factory .
6. happy send samples to you confirm quality

Certificate



Company overview

                                                                      The company scenery

                                                                         Workshop show


                                                                          Packing show


                                   Product usage scenario in various countries and regions


Our Services
FAQ

How long is your air compressor warranty?
Answer: 1 year.

Do you provide After- sales service parts?
Answer: Of course, We could provide easy- consumable spares.

How long could your air compressor be used?
Answer: Generally, more than 10 years.

How about your price?
Answer: Based on high quality, Our price is very competitive in the world

How about your customer service?
Answer: For email, we could reply our customers' emails within 2 hours.
