HONGWUHUAN H680B diesel 30m mining stone hydraulic hard rock drilling machine

FOB Reference Price:Get Latest Price
$42,999.00 - $59,999.00 / Sets | 1 Set/Sets for hydraulic hard rock drilling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HONGWUHUAN
Model Number:
H680B
Usage:
Ore
Voltage:
Diesel Engine Driven
Power(W):
standard configuration 70kw;90kw available
Dimension(L*W*H):
6100*2250*2500mm
Weight:
6500KG
Certification:
ISO,CE,GC
Product name:
factory sale hydraulic hard rock drilling machine
Rock hardness:
f=6-20
Drill depth:
30m
Drill diameter:
90-165mm
Matching diesel engine:
Cummins
Feeding stroke:
4150m
Rotary torque:
3500N.m
Rotary speed:
0~120r/min
Work pressure:
1~2.4MPa
Walking speed:
2~3km/h
After-sales Service Provided:
No overseas service provided
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Month for hydraulic hard rock drilling machine
Packaging & Delivery
Packaging Details
nude packed
Port
Shanghai Port
Lead Time :
about 15 days after receiving down payment
Product Introduction

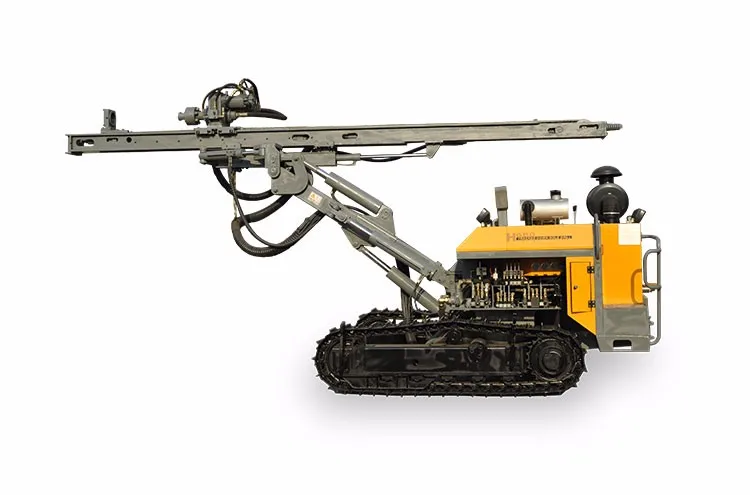

HONGWUHUAN H680B diesel 30m mining stone hydraulic hard rock drilling machine

Technical Parameter

 Whole machine model
H680B











Whole machine
To adapt to the rock hardness
f=6~20
Diameter of bore(mm)
90~165
Economic drill deepth(m)
30
Stand-alone gradeability(
30
Propulsion mode
The motor chain propulsion
Feeding stroke(m)
4150
Maximum lift capacity(kN)
35
 Rotary torque(N.m)
3500
Rotary speed(r/min)
0~120
Work pressure(KPa)
1~2.4
Air consumption(m3/min)
14~35
Main Power(kw)
70(General)/90(Optional)
Drill arm horizontal pendulum Angle(
left45/right45
Walking speed(km/h)
2~3
Ground clearance(mm)
400
 Dimensions(mm)
6100*2250*2500
Weight(kg)
6500
Product Features
Certificate



Company overview

                                                                      The company scenery

About the advantages of our factory for you reference.
1. more than 20 year automatic drilling machine manufacture.
4. we are WEICHAI,CUMMINS,YUCHAI,HANBELL supplier
2. One -stop service more than 20 years.
5. we have more than 20 years of export experience.
3. we have big showroom in factory .
6. happy send samples to you confirm quality

                                                                         Workshop show


                                                                          Packing show


                                   Product usage scenario in various countries and regions


Our Services
FAQ

How long is your air compressor warranty?
Answer: 1 year.

Do you provide After- sales service parts?
Answer: Of course, We could provide easy- consumable spares.

How long could your air compressor be used?
Answer: Generally, more than 10 years.

How about your price?
Answer: Based on high quality, Our price is very competitive in the world

How about your customer service?
Answer: For email, we could reply our customers' emails within 2 hours.
